Dataset-22: Android-based 4G LTE Measurements for Semi-Circular UAV Trajectory around a Private AERPAW Base Station

2025
2024, 4G LTE, Rural
PawPrints
2024, 4G LTE, Android, PawPrints, Private Ericsson Base Station, Rural, Samsung S21, Smartphone

Lead Experimenter

Simran Singh, North Carolina State University

Link to Dataset

  • Dataset Link: Dataset: The dataset contains LTE KPIs of the AERPAW private Ericsson base station, such as RSRP, RSRQ and RSSI, collected at the UAV and logged at one-second intervals. Position information of the UAV, in terms of latitude, longitude, and altitude, is also included. The dataset is shared in .csv format at [Google Drive].
  • Source Code: Post Processing scripts are shared at [GitHub].

Equipment and Software Used

Samsung S21, PawPrints Android App, SPN on a SAM

Description

A UAV carrying a Samsung S21 Android Phone was flown in a trajectory approximating semi-circles around a private Ericsson AERPAW base station. The Android logged 4G cellular KPIs, and these logs were correlated with the UAV’s position based on timestamps. All cellular and position KPIs are merged in a single .csv file for convenient analysis.

Publications

    Representative Results

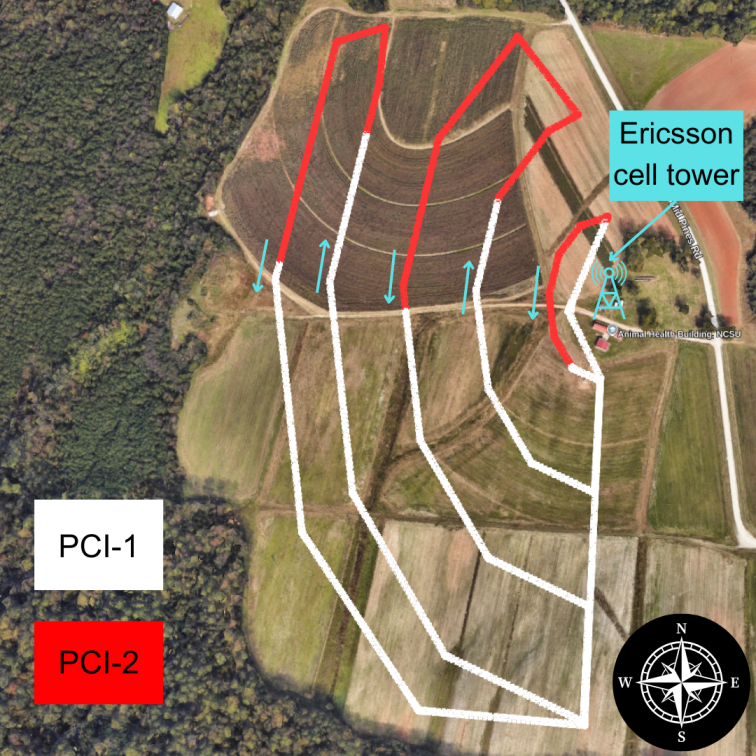

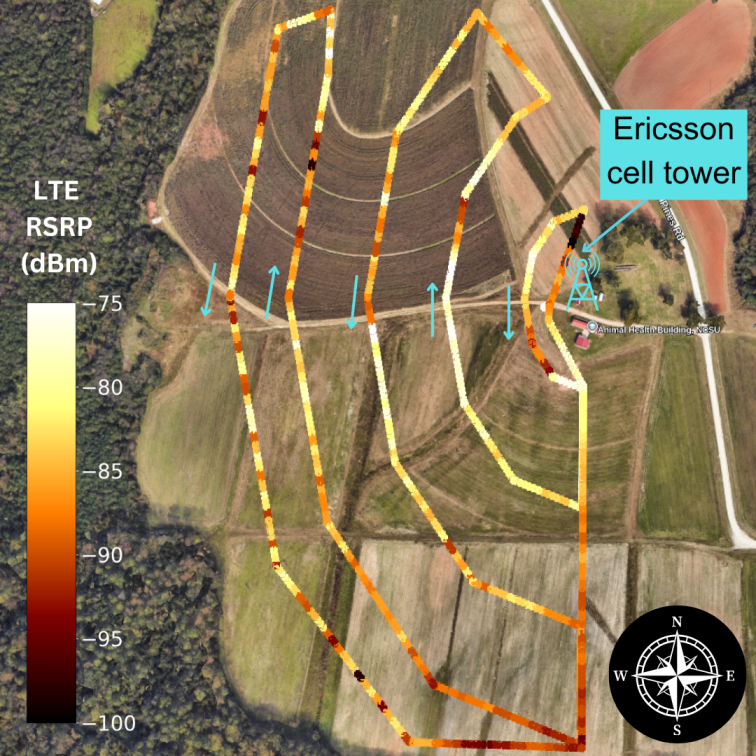

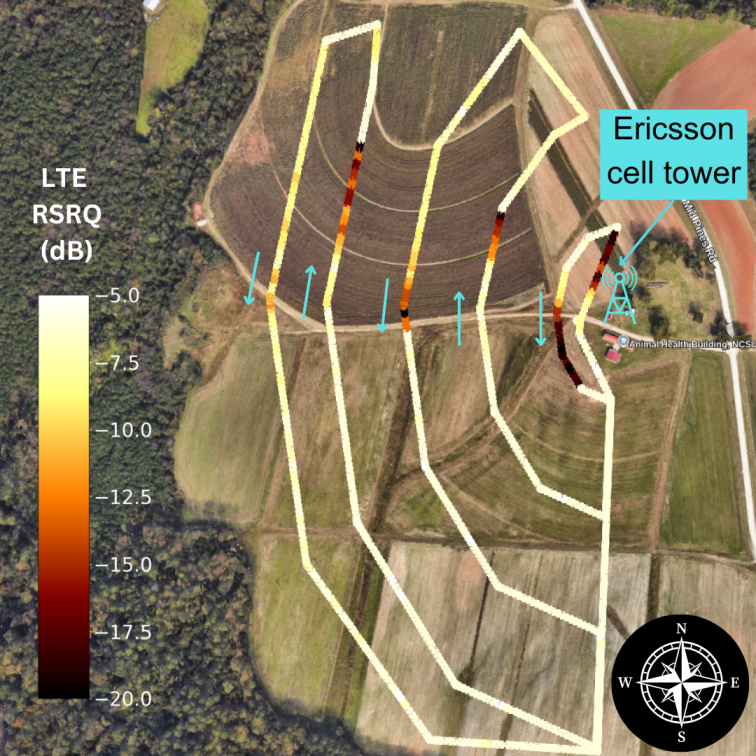

    The cell association, LTE RSRP, and LTE RSRQ results are presented below.



    Potential use cases for this dataset include:

    • Cellular network planning for aerial users
    • Air to ground coverage analysis for 5G NSA cell towers
