Dataset-35: September 2026: LTE IQ Measurements using LW1 and LW3 fixed nodes and Large Portable Node carried on top of the car at 3.3 GHz and 900 MHz
Lead Experimenter
Ozgur Ozdemir
Link to Dataset
To be added later
Equipment and Software Used
Car carrying LPN3 (3.3 GHz) and LPN4 (900 MHz), USRP B205mini, USRP B210, UHD2 IQ collection software, SE1 LTE SISO software
Description
In this measurement we use two LPNs one for 3.3 GHz and the other one at 900 MHz. The fixed nodes LW1 and LW3 operate at both bands. The LPN and a GPS logger are attached on the top of a car and they moves with the car. We use a prerecorded LTE signal to transmit and the receiver performs IQ recording which is then postprocessed to get RSRP data. When LW1 and LW3 are used as transmitters they transmit at separate frequencies (3300 MHz and 3320 MHz or 903MHz and 914MHz) and IQ recirding is done at the LPN by hopping between two frequencies. In this case we repeat the route twice one for the first front end of the fixed node and one for the second front end of the fuixed node. When LPN is the transmitter it transmits at a single frequency (3300 MHz or 903 MHz) and the LW1 and LW3 record IQ data from both front-ends simultaneously.
Representative Results

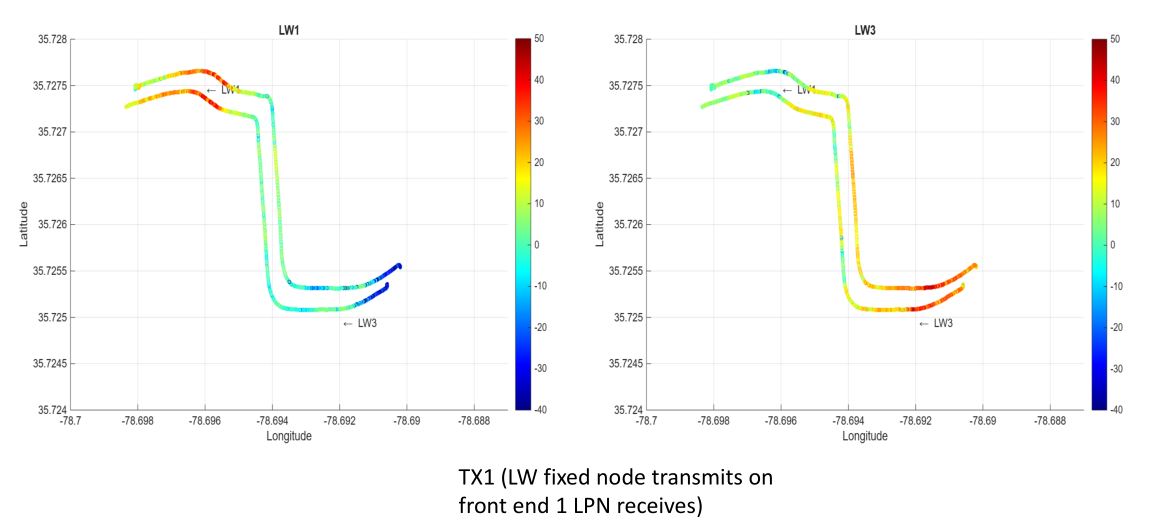

The RSRP measurements below belong to the case where the first front-end of the fixed nodes LW1 and LW2 transmit and LPN3 receives at 3.3 GHz band

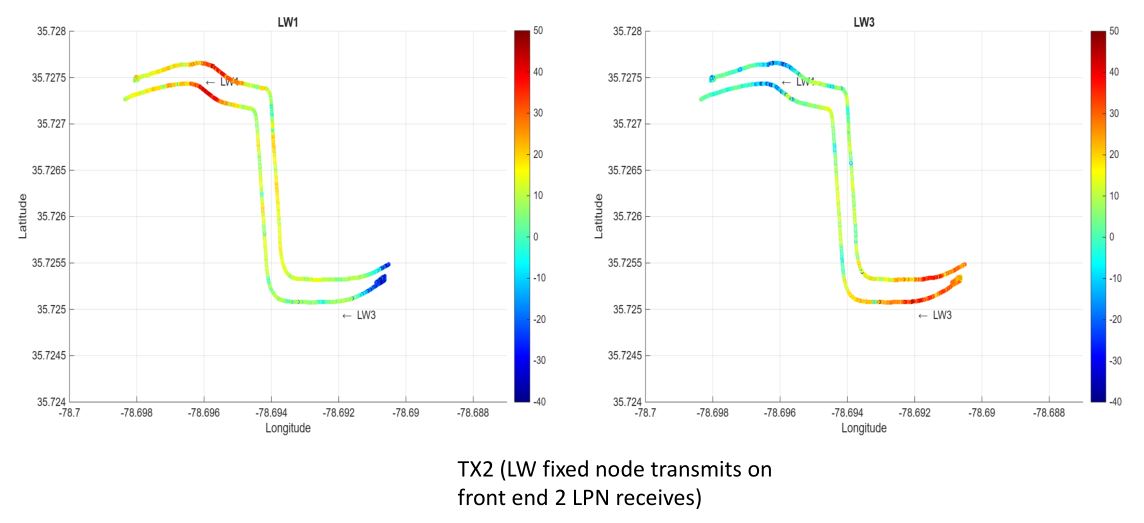

The RSRP measurements below correspond to the case where the second front-end of the fixed nodes LW1 and LW2 transmit and LPN3 receives at 3.3 GHz band

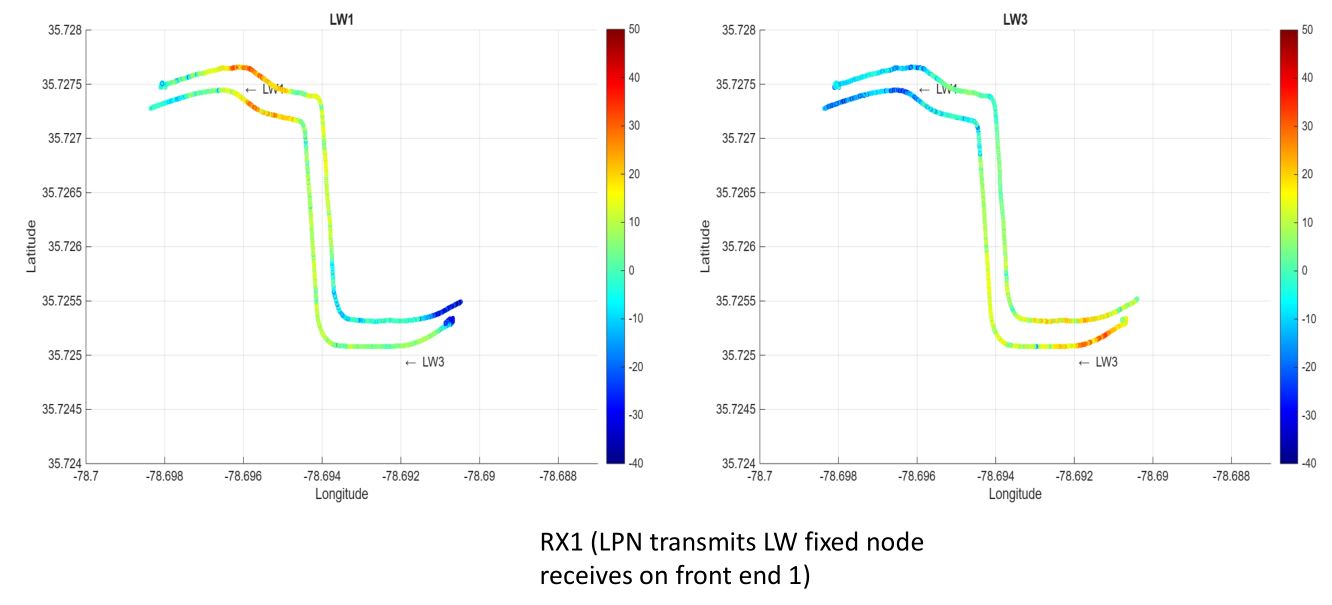

The RSRP measurements below belong to the case where LPN3 transmits and the first front-end of the fixed nodes LW1 and LW2 receive at 3.3 GHz band

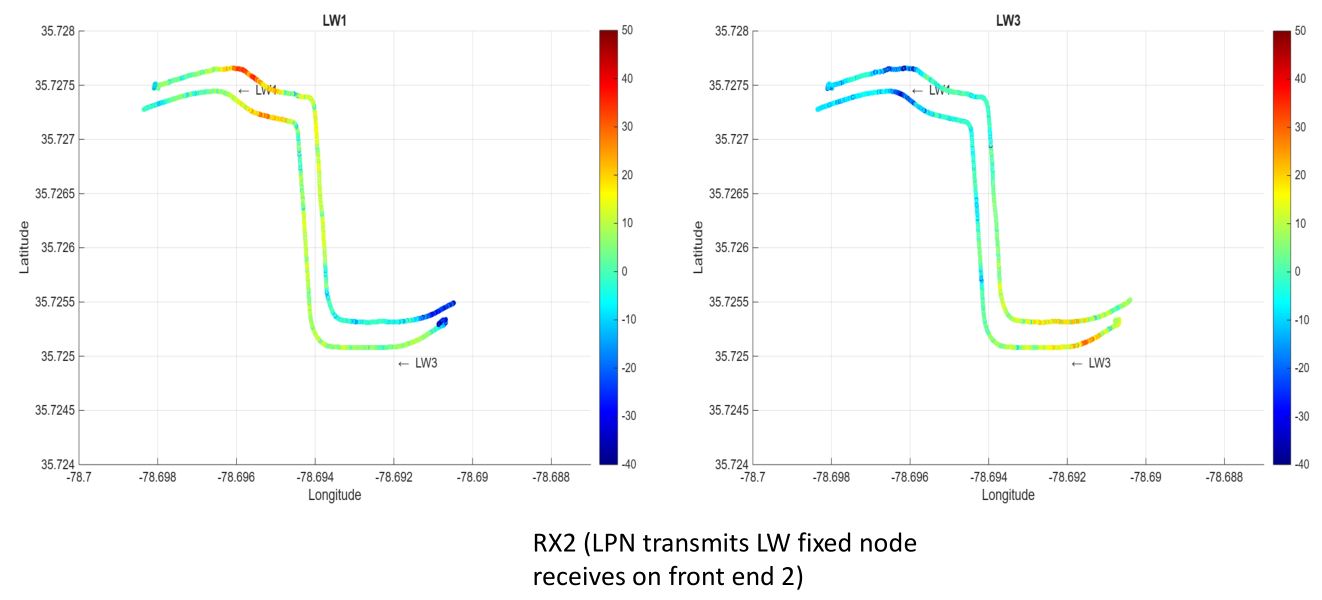

The RSRP measurements below belong to the case where LPN3 transmits and the second front-end of the fixed nodes LW1 and LW2 receive at 3.3 GHz band

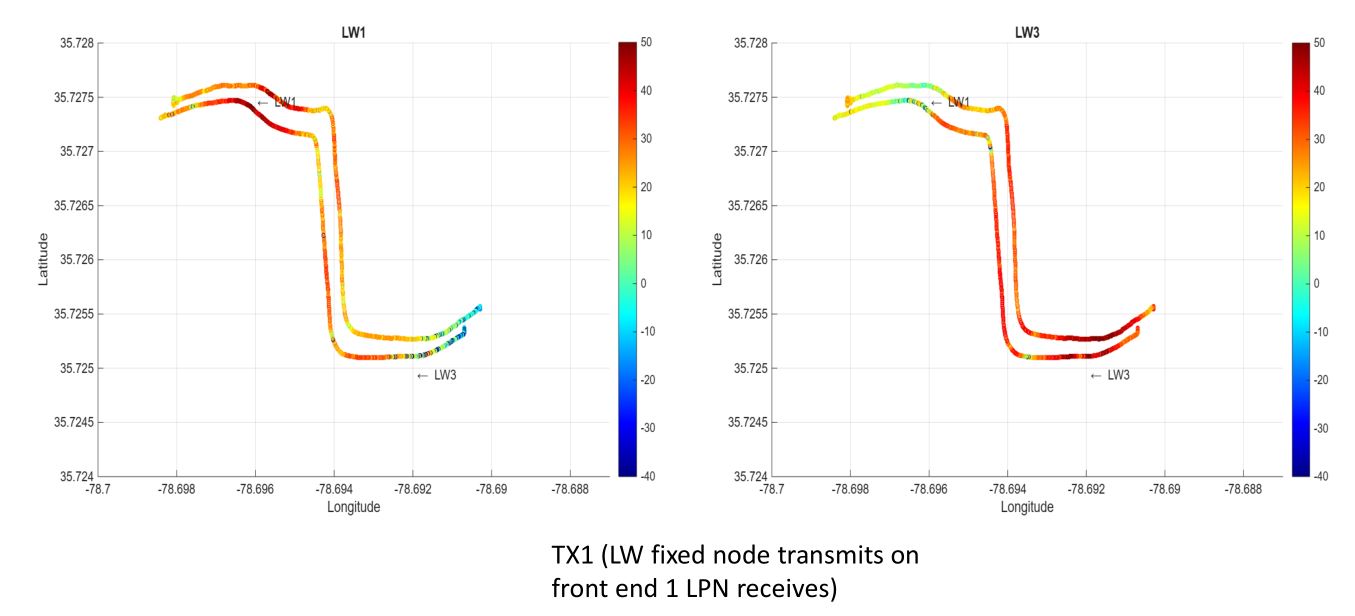

The RSRP measurements below belong to the case where the first front-end of the fixed nodes LW1 and LW2 transmit and LPN3 receives at 900 MHz band
The RSRP measurements below correspond to the case where the second front-end of the fixed nodes LW1 and LW2 transmit and LPN3 receives at 900 MHz band

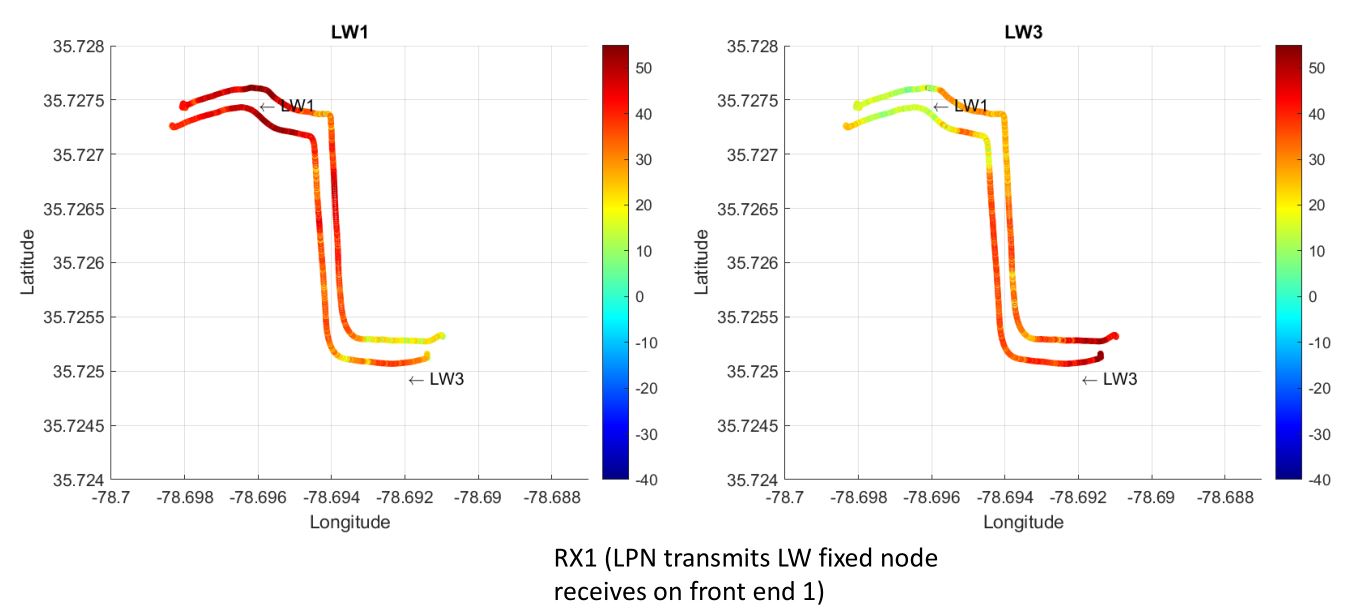

The RSRP measurements below belong to the case where LPN3 transmits and the first front-end of the fixed nodes LW1 and LW2 receive at 900 MHz band

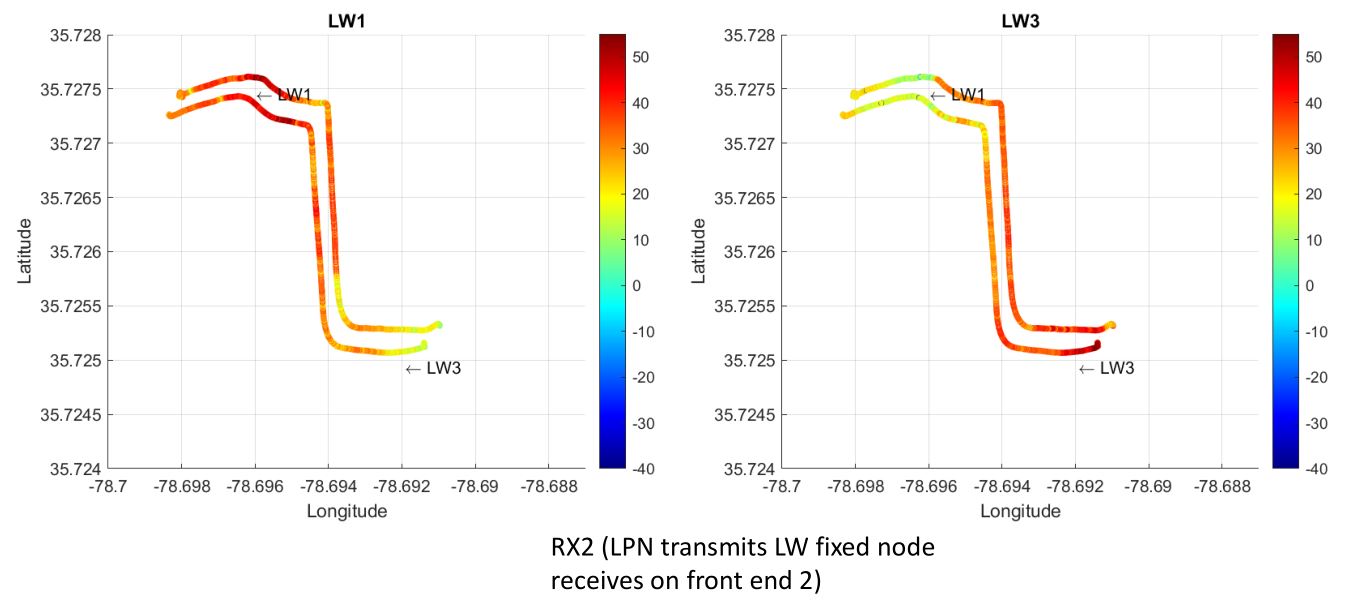

The RSRP measurements below belong to the case where LPN3 transmits and the second front-end of the fixed nodes LW1 and LW2 receive at 900 MHz band
